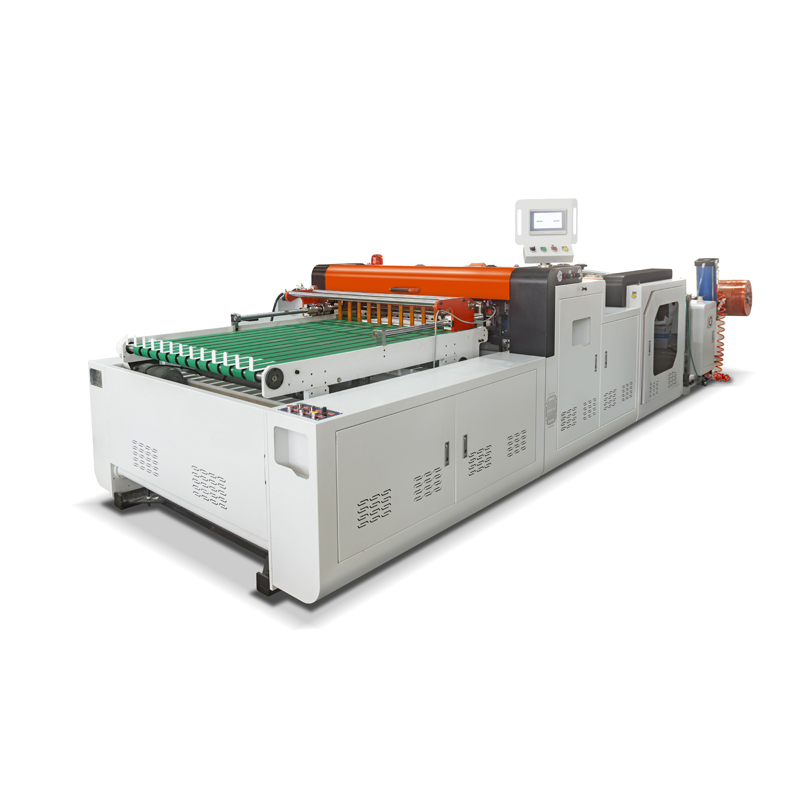

    SYH-D Paper Cutting Machine 1 Roll System

    This machine is suitable for all kinds of paper, PVC, PET film, paper-plastic composite, cloth, leather Cutting of large roll packaging materials such as leather, medical film, digital photo paper, etc.

    PERFORMANCE AND CHARACTERISTICS

    This machine is suitable for all kinds of paper, PVC, PET film, paper-plastic composite, cloth, leather Cutting of large roll packaging materials such as leather, medical film, digital photo paper, etc.

    It adopts servo motor for controlling constant-length cutting. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has thefunctions of easy operation, high precision, good stability, low noise. This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste (optional device).

    PERFORMANCE AND CHARACTERISTICS

    ModelSYH-800DSYH-1100DSYH-1400D
    Max diameter of material￠1400 mm￠1400 mm￠1400 mm
    Max. width of cutting800 mm1100 mm1300 mm
    Min. Width of slitting50 mm50 mm50 mm
    Length of cutting20-1200 mm20-1200 mm20-1200 mm
    Precision of fixed length±0.2 mm±0.2 mm±0.2 mm
    Speed10-180 times/min10-180 times/min10-180 times/min
    Total power9 kw10 kw10 kw
    Weight (approx.)2500 kg2800 kg3000 kg
    Overall dimension (L×W×H)5000×1600×1300 mm5000×1950×1300 mm5000×2150×1300 mm
